Trash Boom-oilca-Manufacturing For Effective Spill Control & Containment Products

JXY has specialize in manufacturing and designing Oil Containment Booms since 2004 and supply a full range of Oil Containment Booms. As an industry leader in manufacturing of Oil Containment Boom, we have participated in many globally Oil Spill Response Projects. We can also manufacture custom boom to fill individual needs, and our team can offer you the best solution way for your oil spill issues. Tell us about your projects, Let our team be at your service!

Clean Water Starts with Us!

The PVC/PU Trash Log boom has a debris boom design that accommodates a variety of water conditions and containment area considerations. Made of 24 oz. durable PVC fabric. Debris boom design includes a tension cable, ballast chain, as well as a variety of marine accessories like anchor kits, buoys, shoreline connectors and more.

Model Parameter	JXYWGV-510	JXYWGV-600	JXYWGV-700	JXYWGV-750	JXYWGV-900	JXYWGV-1000
Overall Height(mm)	510	600	700
Free board(mm)	203	205	230	250	305	330
Draft(mm)	307	395	470	500	595	670
Section Length(m)	15/20/30	15/20/30	15/20/30	15/20/30	15/20/30	15/20/30

The Metal Trash Boom is one of the most durable floating debris containment options available. When you need to contain timber or large floating debris, using a log boom like the metal boom, provides a heavy duty containment solution with easy set up.

Model:JXYMTB
Section Lengths: 1300mm
Height:60cm,80cm,100cm
Material: Hot Dipped Galvanized or Stainless Steel
Floats: High Visibility Orange

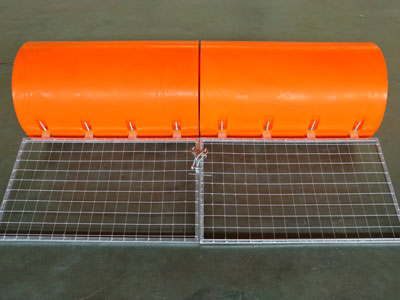

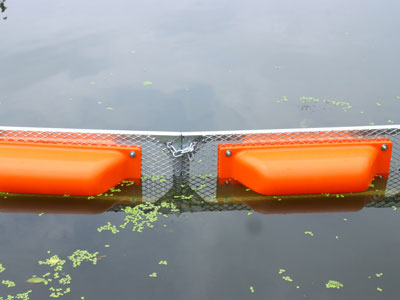

HDPE Trash Boom with Steel Netting is ideal for marine environments, power plants, rivers, dams, floating trash, floating logs, and other floating debris.The Floating Trash and Debris Boom are easy to install + maintain + service; no special equipment is required for servicing.

Model Parameter	JXYTSNB300	JXYTSNB600
Flotation Size	Φ300mm*1000mm	Φ600mm*1000mm
Netting Depth	60cm,80cm	60cm,80cm
Section Length	1 Meter	1 Meter
Netting Material	Hot Dipped Galvanized or Stainless Steel	Hot Dipped Galvanized or Stainless Steel

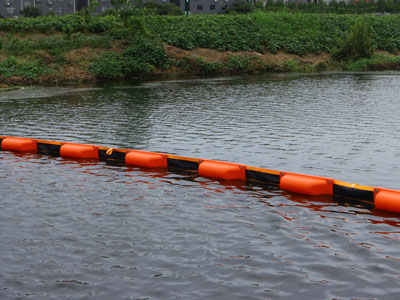

Permanent Heavy Duty Trash Booms are designed to exclude or contain floatable objects such as floating debris, floating trash, sargassum/seaweed or invasive species plants. These barriers have a proven robust design intended for an extended service life with limited field maintenance. Management of waterways, stormwater applications and coastal protection are all common applications for these barriers.

Model	JXY-PCB450	JXY-PCB600	JXY-PCB900
Overall Height(mm)	450	600	900
Free board(mm)	200	250	300
Draft(mm)	250	350	600
Section Length(m)	20	20	20

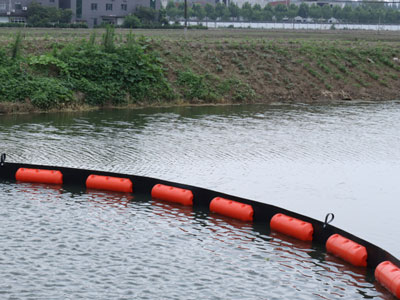

Semi Permanent Debris Boom is lightweight, highly durable and it has been used around the world. Designed for heavy duty semi-permanent installation or emergency deployment in onshore, harbors, and bay area to contain trash objects.

Model	JXY-SPCB450	JXY-SPCB600	JXY-SPCB900
Overall Height(mm)	450	600	900
Free board(mm)	200	250	300
Draft(mm)	250	350	600
Section Length(m)	20	20	20

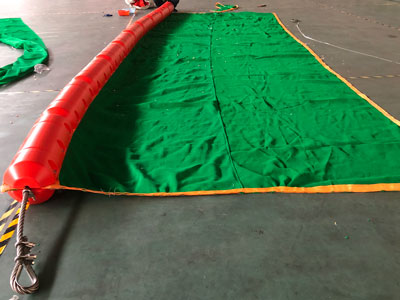

Floating Cable Trash Barriers are composed of HDPE floats connected with stainless steel wire ropes with a diameter of 16mm in between to increase tensile strength and for connection purposes.These floating barrier for trash feature a top flotation device and a bottom permeable net allowing it to contain materials both above and below the surface.

Hydroelectric power plants often rely on floating debris barrier as part of their debris mitigation strategy and a first line of defense. Without floating debris barrier to block trash and floating debris from entering water intakes, equipment can be damaged, and production significantly impacted or shut down.

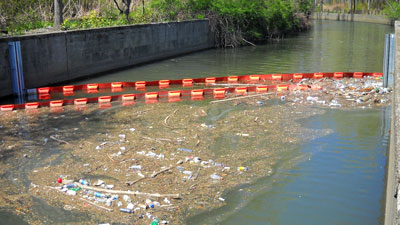

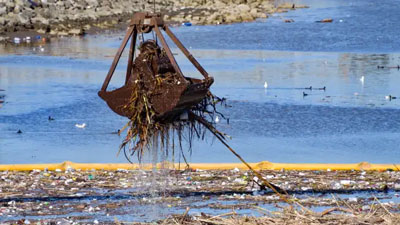

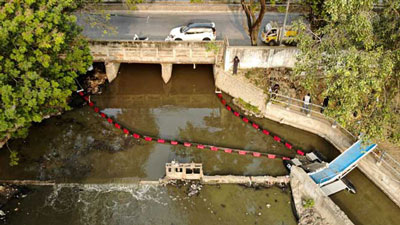

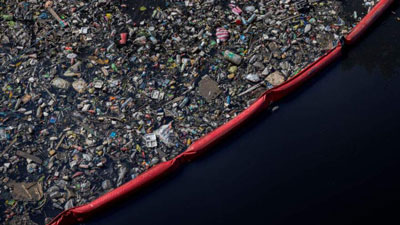

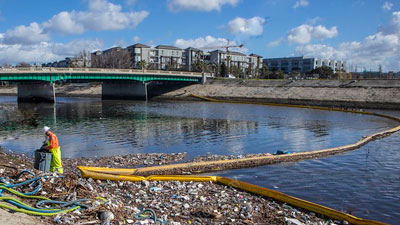

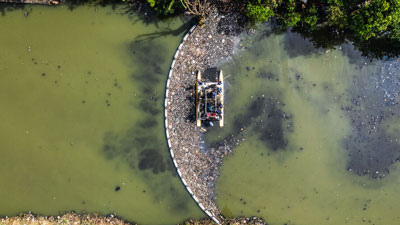

Project References

WE OFFER

Over 20 years of experience in designing, manufacturing, and delivering complete oil spill response solutions.
A comprehensive range of oil spill equipment, all designed and built in house, customizable on demand to specific client requirements.
Oil spill consulting services, including contingency planning, site evaluations and preparedness reviews. These assist clients in determining and maintaining their equipment and logistics requirements to ensure readiness in the event of an emergency situation.
Direct prices from factory, no intermediate prices;
