PVC Oil Spill Containment Boom

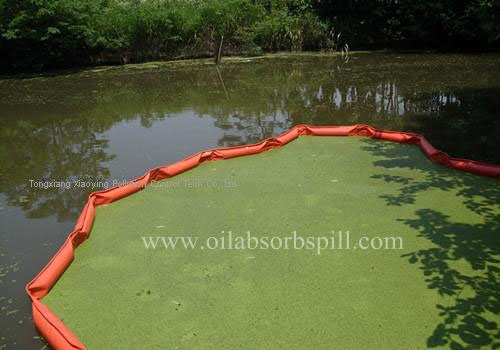

The PVC Oil Spill Containment Boom is an economical, universal boom for intercepting oil spill and other floats on waters. It is suitable for the permanent, stationary deployment on waters. Thanks to its fast deployment and easy operation, it is widely used on rivers, harbours, lakes, offshore oil platforms and other waters.
Features:
1.Made of the high strength fabric coated with orange PVC on its two sides, having excellent resistance to oil and ageing.
2.The solid float have a large capacity of buoyancy and excellent wave riding and steadiness.
3.The boom body is provided with a pulling rope, a strengthening ribbon and tensile ballast
Technical Data:
Model Parameter | JXY- WGV 600 | JXY- WGV 700 | JXY- WGV 750 | JXY- WGV 800 | JXY- WGV 900 | JXY- WGV 1000 | JXY- WGV 1100 | JXY- WGV 1500 |
Overall Height(mm) | 600 | 700 | 750 | 800 | 900 | 1000 | 1100 | 1500 |
Freeboard (mm) | 150 | 210 | 260 | 280 | 320 | 340 | 270 | 520 |
Draft (mm) | 380 | 390 | 400 | 420 | 490 | 540 | 560 | 760 |
Length Per Section(m) | 20 | |||||||
Max, working Tensile Strength (KN) | 20 | 25 | 30 | 45 | 55 | 75 | 85 | 130 |
Max, wave Height to withstand (m) | 0.5 | 0.5 | 1 | 1.5 | 1.8 | 2 | 2 | 3 |
Max, wind Speed to Withstand (m/s) | 8 | 10 | 10 | 15 | 15 | 18 | 20 | 20 |
Max, current Speed to Withstand (Kn) | 1 | 1 | 1.5 | 1.5 | 2 | 2.5 | 2.5 | 3 |
Packing dimensions for 20m | 1*1*0.6 | 1.2*1*1 | 1.2*1*1 | 1.3*1.1 *1.1 | 1.4*1.5 *1.2 | 1.4*1.6 *1.3 | 1.4*1.7 *1.4 | 1.6*1.9 *1.8 |
