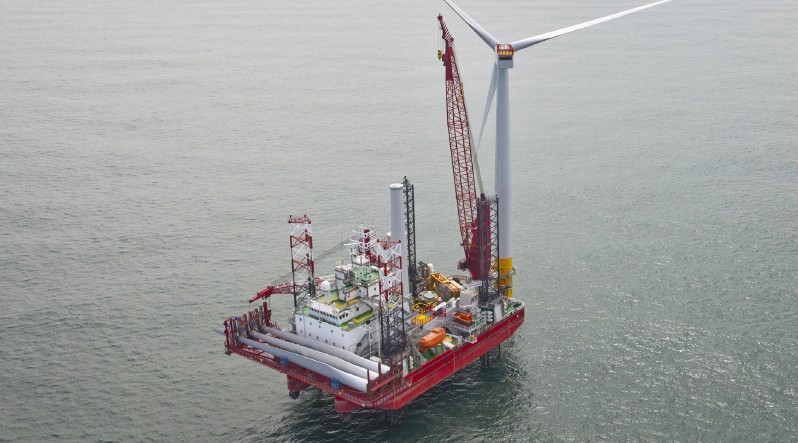

Multi Purpose DP Self Propelle

Main dimensions
Hull length 61.0 m
Hull width 36.0 m
Hull depth 6.0 m
Hull draft 3.7 m
Leg length max (incl footing) 70.0 m

Classification and Regulations
ABS A1, Self Elevating Unit, AMS, ACCU, DPS-2

Jacking system
? Type rack & pinion
? Preload 2,750 t per leg
? Jacking speed (hull) 0.8 m/min

Power plant and propulsion
? Generator sets 4 x 1,600 kW
? Emergency set 480 kW
? Thrusters 4 x 1,500 kW

Craneage
? Main crane 300 t at 16 m
? Auxiliary crane 20 t at 37.5 m

Hotel facilities
Fully air-conditioned cabins for 90 persons
Facilities up to 120 persons

Helideck
? Helicopter S61N, S92
? Dimension 22 m

Storage capacities
? Fuel oil 300 m3
? Potable water 480 m3
? Brine 200 m3

Variable load and deck space
? Variable load (survival) 1,300 t
? Free deck space 900 m2

Design criteria
operating survival
? Water depth max [m] 52.0 45.6
? Wave height max [m] 6.8 13.1
? Associated wave period [s] 8.1 11.3
? Surface current [m/s] 1.4 1.6
? Wind speed (1 min) [m/s] 21.0 38.8
? Leg penetration [m] 1.0 1.0
? Air gap (SWL) [m] 13.5 12.9
